Product Feature:
RSP-320
1>Universal AC input/Full range.
2>Built-in active PFC function.
3>Forced air cooling by built-in DC fan with fan speed control function.
4>Protections:Short circuit/Overload/Over voltage/Over temperature.
5>Optional conformal coating.
6>LED indicator for power on.
7> The device boasts high efficiency, long lifespan, and high reliability and comes with a 3-year warranty.
PRICE:29.2USD/PC
| Weight | 1 kg |
|---|
$29

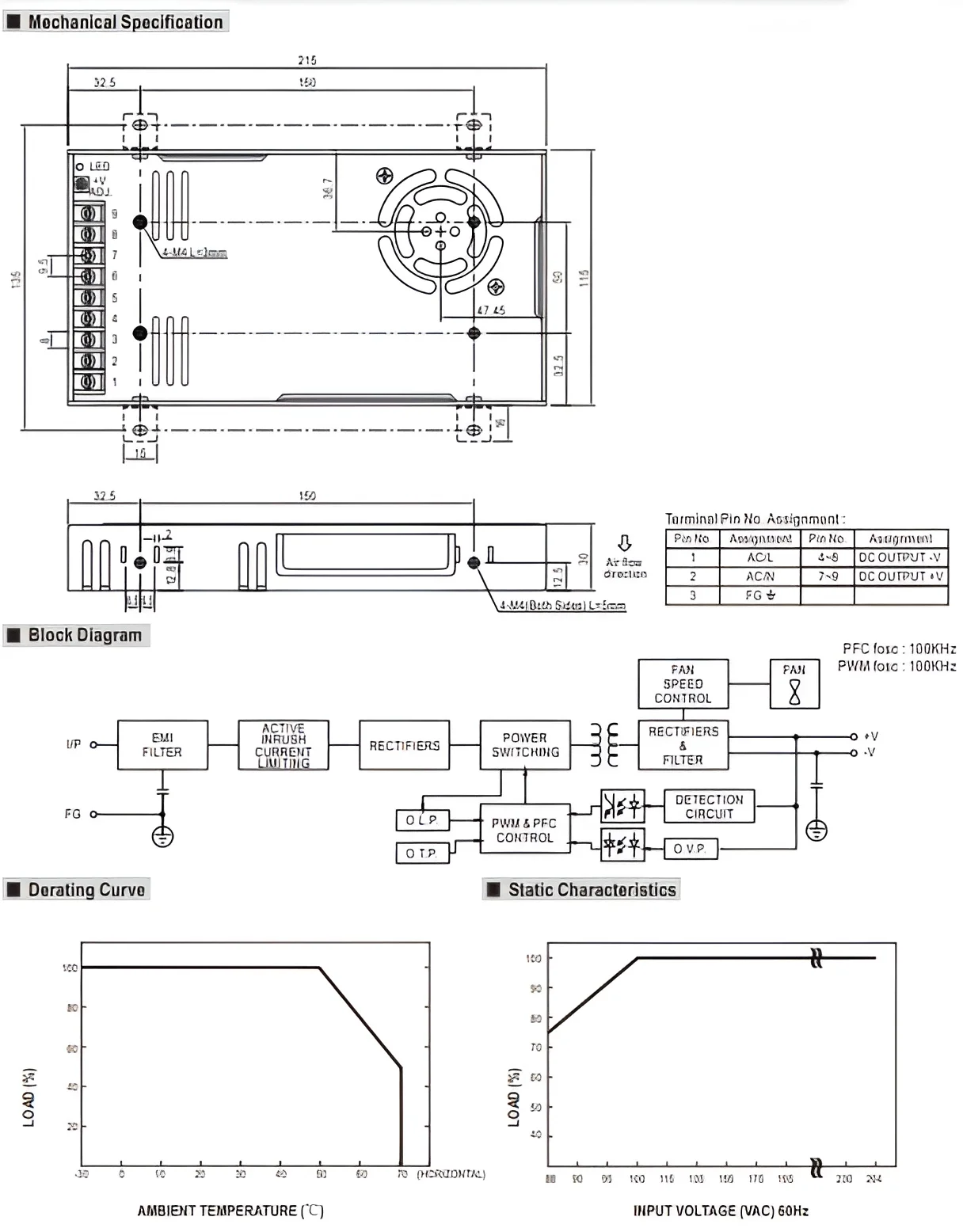

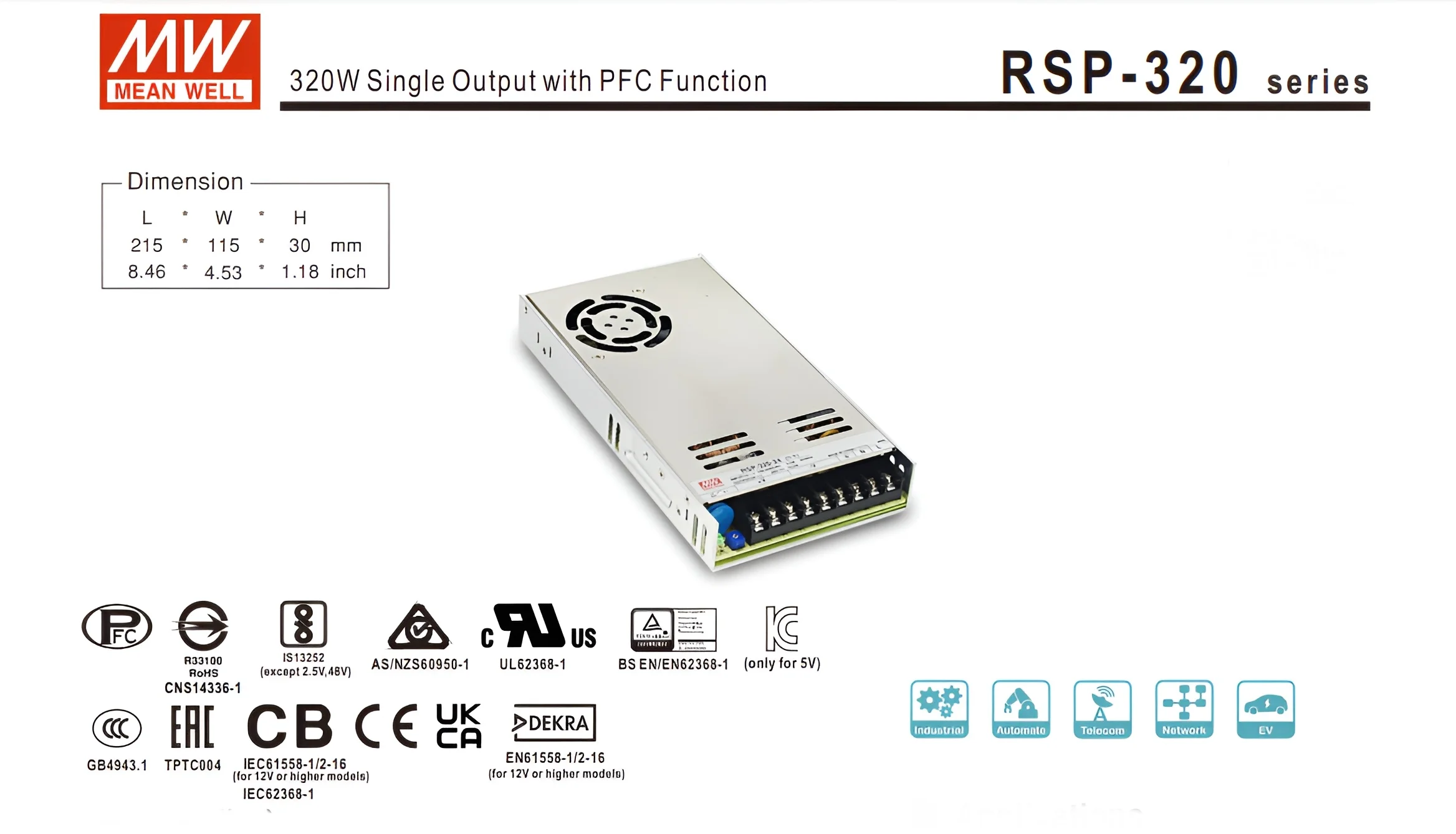

RSP-320 is a 320W single output enclosed type AC/DC power supply.This series operates for 80~264V AC input oltage and offers the models with the DC output mostly demanded from the industry.Each model is cooled by the built-in with fan speed control,working for the temperature up to 70℃.

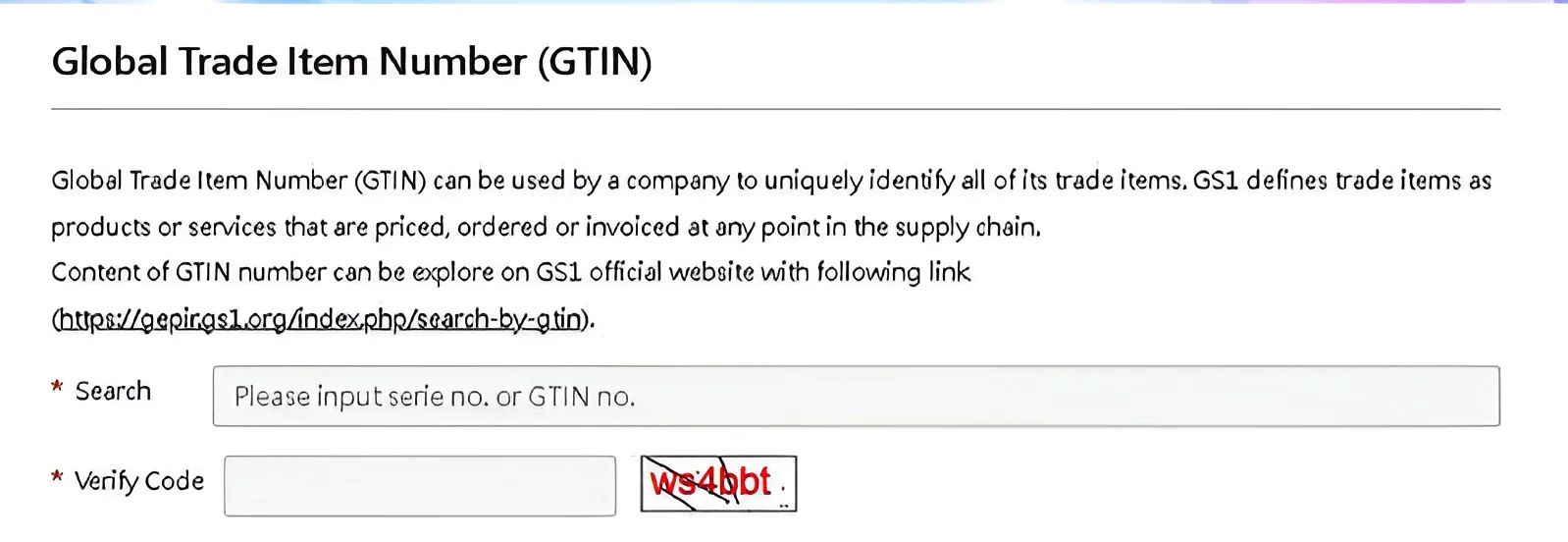

Our power supplies are sold by Mingwei Company as authorized agents, and our company promises to provide only genuine products without any counterfeit items. Customers can verify the authenticity of their products quickly by visiting Mingwei’s official website or using the following link after receiving them.
https://www.meanwell.com/serviceGTIN.aspx
Put the circuit board in the fixture and then place it under a gravity tool to flatten it to the same level.
Use a tin brushing machine to evenly brush solder paste on the IC or lamp positions.
.
To ensure quality assurance, use testing machines to check if the solder injection points on the circuit board have been coated with solder paste.
high-speed SMT machine can produce up to 1000 LED modules per day, ensuring timely delivery for our customers.
Use reflow soldering to fix the leds, ICs, capacitors and resistors on the circuit board.
To ensure quality assurance,after fixing all components to circuit board, Will manually test the performance of LED modules.
Automatic Screw Machine: Use the screw machine to fix the circuit board with the bottom shell.
Automatic glue machine: Using an automatic glue machine to glue outdoor LED screen modules to achieve IP65 waterproof level.
The third door to quality assurance:Check the sealing condition of each module to ensure 100% waterproofing of the product.
The fourth step in quality assurance is to manually test the performance of the finished LED screen module.
Aging test: The finished led screen module undergoes a 48 hours aging test to ensure product quality.
