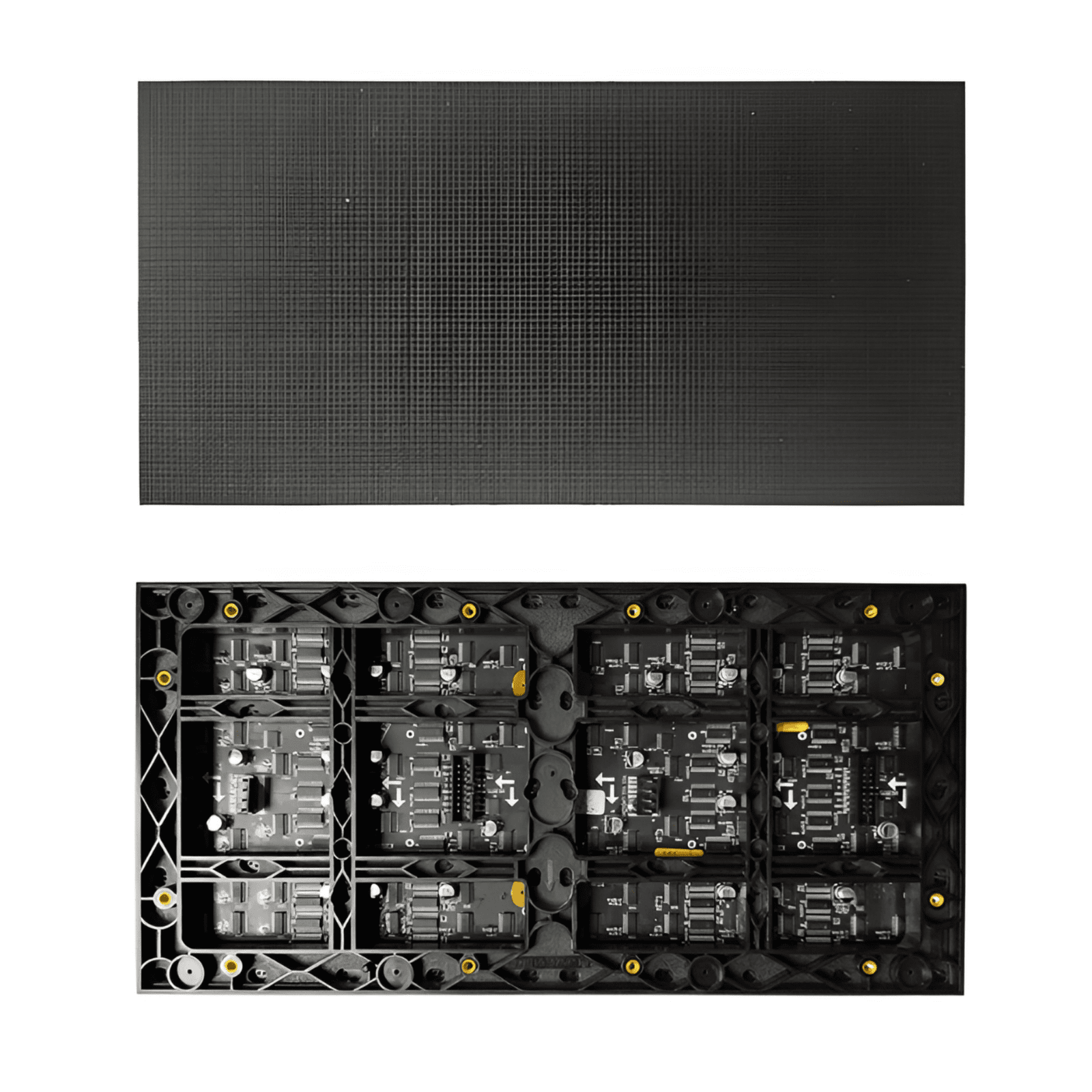

P1.53 indoor led module

LED Module Base Parameters
Pixel Pitch P1.53
Panel Size 320*160mm
Resolution 208*104
LED(HS/RS/Nationstar) SMD1212
Drive IC ICN/FM/SM
Drive Mode 1/32 Scan
Current(Max) 3.0A
Whole Led Screen Parameters
Brightness 600cd/㎡
Display Color 16.7M
View Angle 110 degree ( horizontal) 110degree(vertical)
View Distance 1.5m-30m
Operation Power AC100-240V 50-60HZ
Maxim Power Consumption 600 w/㎡
Average Power Consumption 220 w/㎡
Refresh Rate  2K /4K (Depending on the driving IC)
Correction Scale Level 16bits
Frame Rate 60Hz
Support Input Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance Ethernet cable 100m, optical fiber 5km
Operating Temp -20-60 Celsius Degrees
Operating Humidity 10-95% RH
Operating Life 100,000 hours
MTBF 5000 hours
Protection Level IP43
Out of Control Pixel Rate 0.01%
Continuous Working Time 72 hours

Contact us quickly!

We’d love to keep you updated with our latest news and offers 😎

We don’t spam! Read our [link]privacy policy[/link] for more info.

Production Process of LED Modules

Step 1

Put the circuit board in the fixture and then place it under a gravity tool to flatten it to the same level.

Step 2

Use a tin brushing machine to evenly brush solder paste on the IC or lamp positions.

.

Step 3

To ensure quality assurance, use testing machines to check if the solder injection points on the circuit board have been coated with solder paste.

Step 4

High speed SMT machine: Our company’s high-speed SMT machine can produce up to 1000 LED display modules per day, ensuring timely delivery for our customers.

Step 5

Use reflow soldering to fix the leds, ICs, capacitors and resistors on the circuit board.

Step 6

To ensure quality assurance,after fixing all components to circuit board, Will manually test the performance of LED modules.

Step 7

Automatic Screw Machine: Use the screw machine to fix the circuit board with the bottom shell.

Step 8

Automatic glue machine: Using an automatic glue machine to glue outdoor LED screen modules to achieve IP65 waterproof level.

Step 9

The third door to quality assurance:Check the sealing condition of each module to ensure 100% waterproofing of the product.

Step 10

The fourth step in quality assurance is to manually test the performance of the finished LED screen module.

Step 11

Aging test: The finished led screen module undergoes a 48 hours aging test to ensure product quality.
