SHENZHEN DHX TECHNOLOGY LIMITED

Size:240*120,LED lamps:HS/RS,Refrsh:INC2049(1920HZ),Price:19.5USD

Size:240*120,LED lamps:HS/RS,Refrsh:INC2069(3840HZ),Price:23.9USD

Size:240*120,LED lamps:NationStar,Refrsh:INC2069(3840HZ),Price:32.8USD

Purchase Notes for LED Screen Modules

  1. Please ensure that you purchase enough LED modules and spare parts (3-5% extra) to construct the entire LED screen. This is because the same batch of LED modules will use the same batch of LEDs, ICs, and capacitors, ensuring consistent brightness, color temperature, angles, and software settings
  2. We typically have the conventional configuration led screen module in stock and can ship it within 72 hours. Customized items (Nationstar + ICN/MBI) require a minimum order quantity of 200 pieces and can be shipped within 15 days.
  3. Our LED modules come with free data cables(connect between two led moudles) and 5V power cables. Additional charges may apply for special cables.
  4. For orders over $500, our led module prices include ocean freight to your door (25-40 days), but does not include destination tariffs. If you prefer to use DHL (5-7 days), an additional charge of 10-15USD/Kg will apply. Please contact our sales team to obtain specific pricing.
  5. Our LED module comes with a free 2-year warranty. If it needs to be repaired, it must be returned to the factory, and the sender is responsible for the shipping costs.

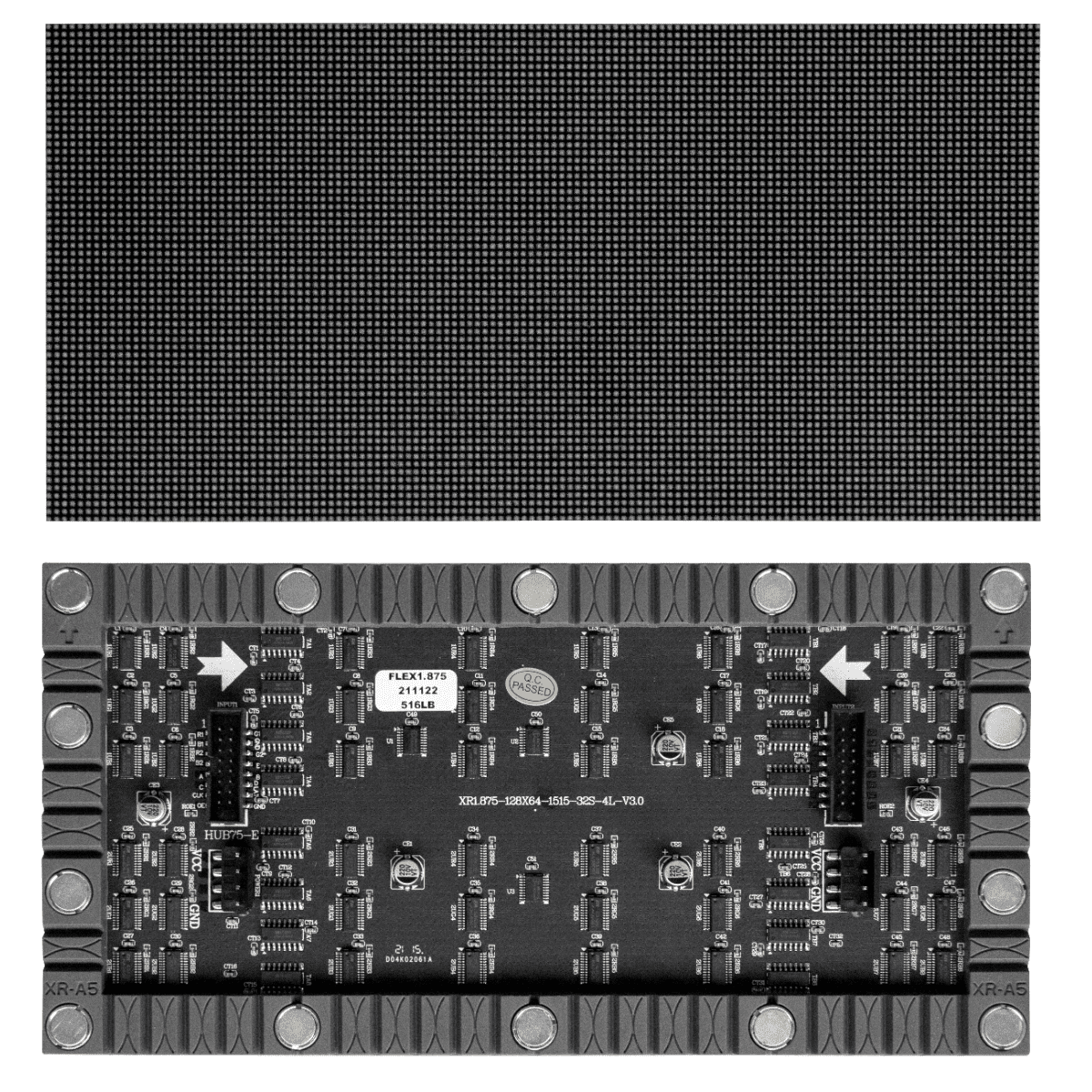

Flexible P1.875 indoor led module

Pixel Pitch P1.875
Panel Size 240*120mm
Resolution 128*64
LED(HS/RS/Nationstar) SMD1515
Drive IC ICN/FM/SM
Drive Mode 1/32 Scan
Current(Max) 3.1A
Whole Led Screen Parameters
Brightness 800cd/㎡
Display Color 16.7M
View Angle 110 degree ( horizontal) 110degree(vertical)
View Distance 1.5m-30m
Operation Power AC100-240V 50-60HZ
Maxim Power Consumption 600 w/㎡
Average Power Consumption 220 w/㎡
Refresh Rate  2K /4K (Depending on the driving IC)
Correction Scale Level 16bits
Frame Rate 60Hz
Support Input Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance Ethernet cable 100m, optical fiber 5km
Operating Temp -20-60 Celsius Degrees
Operating Humidity 10-95% RH
Operating Life 100,000 hours
MTBF 5000 hours
Protection Level IP43
Out of Control Pixel Rate 0.01%
Continuous Working Time 72 hours

Contact us quickly!

We’d love to keep you updated with our latest news and offers 😎

We don’t spam! Read our [link]privacy policy[/link] for more info.

Production Process of LED Modules

Step 1

Put the circuit board in the fixture and then place it under a gravity tool to flatten it to the same level.

Step 2

Use a tin brushing machine to evenly brush solder paste on the IC or lamp positions.

.

Step 3

To ensure quality assurance, use testing machines to check if the solder injection points on the circuit board have been coated with solder paste.

Step 4

High speed SMT machine: Our company’s high-speed SMT machine can produce up to 1000 LED display modules per day, ensuring timely delivery for our customers.

Step 5

Use reflow soldering to fix the leds, ICs, capacitors and resistors on the circuit board.

Step 6

To ensure quality assurance,after fixing all components to circuit board, Will manually test the performance of LED modules.

Step 7

Automatic Screw Machine: Use the screw machine to fix the circuit board with the bottom shell.

Step 8

Automatic glue machine: Using an automatic glue machine to glue outdoor LED screen modules to achieve IP65 waterproof level.

Step 9

The third door to quality assurance:Check the sealing condition of each module to ensure 100% waterproofing of the product.

Step 10

The fourth step in quality assurance is to manually test the performance of the finished LED screen module.

Step 11

Aging test: The finished led screen module undergoes a 48 hours aging test to ensure product quality.
